SOVEREIGN PRO 10-300

Bass Driver

Data Sheet
(2 Reviews)  Review this item
£POA
RRP Inc. VAT
AVAILABILITY : IN STOCK
  • 600 W Program Power.
  • 98 dB Sensitivity (1W/1m).
  • Smooth and balanced frequency response.
  • High linearity suspension system.
  • Long throw motor structure 5.5 mm Xmax.
  • Intended for use in two-way ported enclosures such as the classic bass driver plus horn tweeter or compression driver.
  • 2.5-inch Inside/ outside windings copper voice coil.

The Sovereign Pro 10-300 is intended for use in two-way ported enclosures such as the classic bass driver plus horn tweeter or compression driver format. The unit features die cast chassis with long throw motor system and high linearity suspension allowing solid bass reproduction at high-power levels. This driver delivers a smooth and balanced response throughout its frequency range and delivers well balanced tonal characteristics when properly matched to appropriate high-frequency drivers. The Sovereign Pro 10-300 is designed for use in 14 to 40 Litre ported enclosures and features a 2.5 inch sandwich voice coil capable of 300 Watt power handling and 98 dB sensitivity.



  • Please enquire about alternative impedances.
  • A.E.S. power handling test. Pink noise bandpass filtered at 12 dB per octave with cutoff frequencies of 50 Hz and 500 Hz. Driver mounted in free air, test signal applied at rated power for two hours.

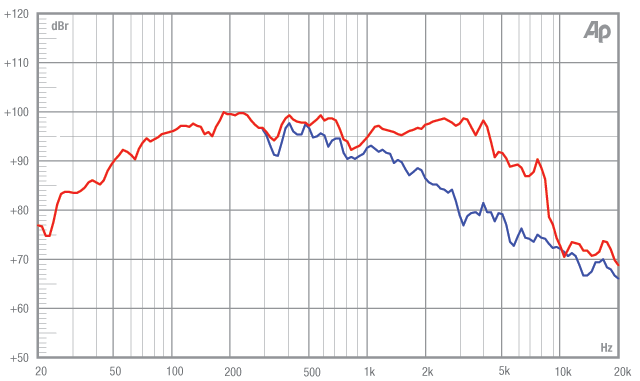

  • Please note that the frequency response measurements are supplied for comparison only and are not a measure of the low frequency performance which may be achieved in a fully optimised system.
Electro Acoustic Specifications
Nominal Chassis Diameter 10" / 254 mm
Impedance 4 /8 /16 Ω
Power Handling 300 W (A.E.S.)
Peak Power (6dB Crest Factor) 1200 W (A.E.S.)
Usable Frequency Range (-6dB) 45 Hz - 4 kHz
Sensitivity (1W - 1m) Wideband 98 dB
Moving Mass (inc. Air Load) 37 grams
Minimum Impedance (Zmin) 6.8 Ω
Effective Piston Diameter 8.46" / 214.88 mm
Magnet Weight 56 oz
Magnetic Gap Depth 0.39" / 10 mm
Flux Density 1.1 Tesla
Coil Winding Height 0.70" / 18 mm
Voice Coil Diameter 2.5" / 63.5 mm
Speaker Type Bass Driver
Speaker Series The Professional Series
Program Power 600 W (A.E.S.)
Sensitivity (1W / 1m) Working band
Thiele Small Parameters (TSPs)
FS 58 Hz
Re 5.7 Ω
QMS 6.08
QES 0.34
QTS 0.32
Vas 41 litres
Vd 0.208 litres
CMS 0.211 mm/N
BL 15.3 T/m
MMS 37 grams
Xmax 5.5 mm
Sd 378 cm2
Efficiency 2.36%
Le 1.68 mH
EBP 170.59 Hz
Materials of Construction
Coil Former Material Glass Fibre
Voice Coil Material Copper - Inside / Outside Windings
Magnet Material Ferrite
Chassis Material Die-cast Aluminium
Cone Material Curvilinear Paper
Surround / Edge Termination Polyvinyl Damped Dbl. Half Roll Linen
Dust Dome Material Solid Paper
Connectors Push-button Spring Terminals
Polarity Positive voltage at red terminal causes forward motion of cone
Mounting / Shipping Information
Overall Diameter 11.16" / 283.4 mm
Width Across Flats 10.34" / 262.7 mm
Flange Height 0.305" / 7.8 mm
Baffle Hole Diameter F/M 8.97" / 227.83 mm
Baffle Hole Diameter R/M N/A
Gasket Supplied Rear
Outer Fixing Holes 4x ø 0.218" on 10.625" PCD / 4x ø 5.5 mm on 270 mm PCD
Inner Fixing Holes Not Applicable
Depth 4.37" / 111 mm
Weight 11.02 lb / 5 Kg
Recommended Enclosure Volume 0.49 - 1.41 cu ft / 14 - 40 Litres
Shipping Weight 12.56 lb / 5.7 Kg
Packing Carton Dimensions (W) 275 (D) 275 (H) 150 mm
replacement for worn out units
Reviewer / FromEngland / Date28 Mar 2017
I bought two of these to replace some units in existing speaker cabinets, besides some minimal wood working required to thomann enlarge the aperture for them to fit the changeover to the Fanes was quick and easy especially as the Fanes have pinch turret connections so no soldering required. The sound reproduction is excellent and compliments the rest of the speaker cabinet extremely well, I am very pleased with thomann these units and would recommend them as a good all round replacement for units in cabinets that have a combined low and high frequency set up.
Perfect for my application
ReviewerTilmannS / FromGermany / Date22 Apr 2015
These speakers were the right choice for me. They are quite hard-hung and therefore also suitable for bass reflex constructions. thomann The sound is crisp and powerful. Extreme low-passages can not be expected with single-set-up, but I was very surprised, what a bumms rauskommt there. The "Pro" version of the speaker has 3 dB more sound pressure, which was worth the tens of extra. My application: Two thomann fairly small and light boxes (about 11 kg). Two paths, ie Tweeter, separated with a Monacor DN-2618 (at 3 kHz). The boxes have about 20 liters of internal volume. The reflex opening is calculated / simulated based on the data of this speaker. A little tip: the thomann normal round grille for 10 "speakers cover the speakers well, but the speaker basket is larger at the mounting holes than the round grille. Looks a bit oldschool, next time I would take a full-surface grille and front foam .
DescriptionSizeFormatGet File
Fane Sovereign Pro 10-300 Datasheet0.19Mb.pdfDOWNLOAD
