SOVEREIGN 15-300TC

Full Range Driver

(0 Reviews) Review this item

£POA

RRP Inc. VAT

AVAILABILITY : IN STOCK

600 W Program Power.
101 dB Sensitivity (1W/1m).
Triple cone configuration and geometry provides genuine, unrivalled extended frequency up to 17 kHz.
The finest option for full-range output in compact PA systems.
Superb when deployed for house of worship applications offering well defined vocal presence and clarity.
Optimised cone pulp offers increased strength, durability and performance.
2-inch Copper clad aluminium voice coil.

DESCRIPTION
SPECIFICATION

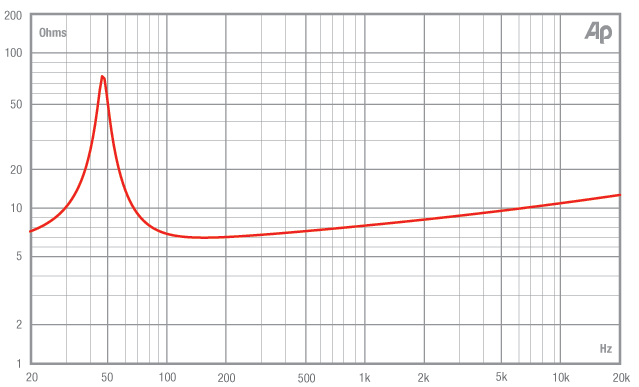

GRAPHS
DOWNLOADS
REVIEWS
RELATED PRODUCTS

The Sovereign 15-300TC features a triple concentric cone design for extended high frequency response up to 15 kHz. Offering well defined full-range characteristics and vocal presence, the Sovereign 15-300TC performs well in standalone, single driver cabinet configurations for smaller applications. It can also be used effectively as part of larger configured systems with supplementary support from additional sub bass.

Please enquire about alternative impedances.
A.E.S. power handling test. Pink noise bandpass filtered at 12 dB per octave with cutoff frequencies of 55 Hz and 550 Hz. Driver mounted in free air, test signal applied at rated power for two hours.
Please note that the frequency response measurements are supplied for comparison only and are not a measure of the low frequency performance which may be achieved in a fully optimised system.

Electro Acoustic Specifications
Nominal Chassis Diameter	15” / 381 mm
Impedance	8 Ohm
Power Handling	300 W (A.E.S.)
Peak Power (6dB Crest Factor)	1200 W (A.E.S.)
Usable Frequency Range (-6dB)	50 Hz - 15 kHz
Sensitivity (1W - 1m) Wideband	101 dB
Moving Mass (inc. Air Load)	56 grams
Minimum Impedance (Zmin)	7.2 Ω
Effective Piston Diameter	15.03” / 381.76 mm
Magnet Weight	56 oz
Magnetic Gap Depth	0.32” / 8.00 mm
Flux Density	1.1 Tesla
Coil Winding Height	0.37” / 9.40 mm
Voice Coil Diameter	2.0” / 50.8 mm
Speaker Type	Full Range Driver
Speaker Series	The Professional Series
Program Power	600 W (A.E.S.)
Sensitivity (1W / 1m) Working band

Thiele Small Parameters (TSPs)
FS	48 Hz
Re	5.2 Ω
QMS	9.892
QES	0.753
QTS	0.7
Vas	203.00 Litres
Vd	0.290 Litres
CMS	0.196 mm/N
BL	11 T/m
MMS	56 grams
Xmax	3.5 mm
Sd	855 cm²
Efficiency	2.900%
Le	0.165 mH
EBP	63.74 Hz

Materials of Construction
Coil Former Material	Kapton
Voice Coil Material	Copper Clad Aluminium Wire
Magnet Material	Ferrite
Chassis Material	Pressed Steel
Cone Material	Curvilinear Ribbed Paper
Surround / Edge Termination	Polyvinyl Damped Multi Roll. Poly Cotton
Dust Dome Material	Paper
Connectors	Solder Tag
Polarity	Positive voltage at red terminal causes forward motion of cone

Mounting / Shipping Information
Overall Diameter	15” / 381 mm
Width Across Flats	N/A
Flange Height	0.35” / 8.89 mm
Baffle Hole Diameter F/M	13.85” / 351.79 mm
Baffle Hole Diameter R/M	13.85” / 351.79 mm
Gasket Supplied	Front & Rear
Outer Fixing Holes	8x ø 6.5 mm on 14.56” / 369.2 mm PCD
Inner Fixing Holes	N/A
Depth	6.37” / 161.80 mm
Weight	11.03 lb / 5.00 kg
Recommended Enclosure Volume	75 Ltr Closed box / 80 Ltr Vented, tuned to 55 Hz
Shipping Weight	13.60 lb / 6.17 kg
Packing Carton Dimensions	(W) 420 (D) 420 (H) 220 mm

Description	Size	Format	Get File
Fane Sovereign 15-300TC Datasheet	0.10Mb	.pdf	DOWNLOAD
