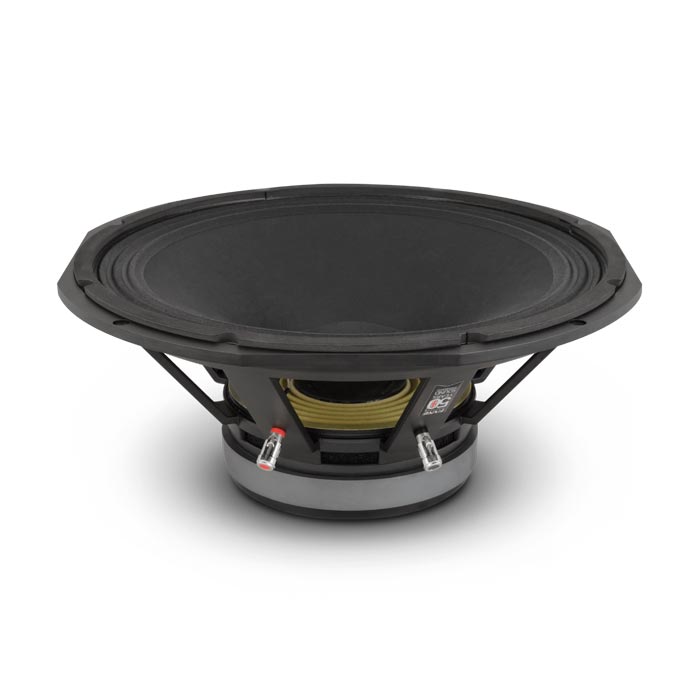

FC-153F01

Bass Driver

Data Sheet
(0 Reviews)  Review this item
£POA
RRP Inc. VAT
AVAILABILITY : IN STOCK
  • Versatile unit for 2 - way ported enclosures.
  • Dynamic, smooth detailed bass reproduction.
  • Extended frequency range usable to 4.5 kHz.
  • Copper shorting ring.
  • Inside/ outside CCAW voice coil windings.
  • Waterproof cone.
  • Optimised for warm tonal character.

The FC-153F01 is intended for use in two-way ported enclosures. The unit features a 3 inch 'sandwich' inside and outside windings voice coil driven by a non-inductive motor system which dramatically reduces third-harmonic and intermodulation distortion. The cone membrane is state of the art material that allows the driver to combine high sensitivity with the structural integrity required to produce undistorted frequencies at high output levels. The mechanical and electrical properties of the unit have been carefully optimised to allow extended low frequency output up to its rated power handling of 400 Watts (A.E.S) continuous, with peak power handling in excess of 1600 Watts. The unit offers excellent extension up to 4.5 kHz. The driver exhibits an average sensitivity of 100 dB working band and is best used in ported enclosures of 45 to 90 Litres.



  • Please enquire about alternative impedances.
  • A.E.S. power handling test. Pink noise bandpass filtered at 12 dB per octave with cutoff frequencies of 45 Hz and 450Hz. Driver mounted in free air, test signal applied at rated power for two hours.
  • Please note that the frequency response measurements are supplied for comparison only and are not a measure of the low frequency performance which may be achieved in a fully optimised system.
Electro Acoustic Specifications
Nominal Chassis Diameter 15" / 381 mm
Impedance 8 Ω
Power Handling 400 W (A.E.S.)
Peak Power (6dB Crest Factor) 1600 W (A.E.S.)
Usable Frequency Range (-6dB) 40 Hz - 4.5 kHz
Sensitivity (1W - 1m) 100 dB
Moving Mass (inc. Air Load) 74 grams
Minimum Impedance (Zmin) 7.3 Ω
Effective Piston Diameter 13" / 330.2 mm
Magnet Weight 93 oz
Magnetic Gap Depth 0.35" / 9 mm
Flux Density 1.2 Tesla
Coil Winding Height 0.75" / 19 mm
Voice Coil Diameter 3.0" / 76.2 mm
Speaker Type Bass Driver
Thiele Small Parameters (TSPs)
FS 40 Hz
Re 5.5 Ω
QMS 6.55
QES 0.32
QTS 0.31
Vas 220 Litres
Vd 0.65 Litres
CMS 0.212 mm/N
BL 18 T/m
MMS 74 grams
Xmax 7.5 mm
Sd 855 cm2
Efficiency 4.42%
Le 1.42 mH
EBP 125 Hz
Materials of Construction
Coil Former Material Glass Fibre
Voice Coil Material CCAW - Inside/ Outside Windings
Magnet Material Ferrite
Chassis Material Die-cast Aluminium
Cone Material Paper
Surround / Edge Termination Polyvinyl Damped Half Roll Linen
Dust Dome Material Paper
Connectors Push-button Spring Terminals
Polarity Positive voltage at red terminal causes forward motion of cone
Mounting / Shipping Information
Overall Diameter 16" / 406.4 mm
Width Across Flats 15.25" / 387.35 mm
Flange Height 0.305" / 7.8 mm
Baffle Hole Diameter F/M 13.85" / 351.79 mm
Baffle Hole Diameter R/M 14" / 355.6 mm
Gasket Supplied Front & Rear
Outer Fixing Holes 4x ø 0.281" on 15.5" PCD / 4x ø 7.1 mm on 393.7 mm PCD
Inner Fixing Holes 8x ø 0.281" on 14.56" PCD / 8x ø 7.1 mm on 370 mm PCD
Depth 6.5" / 165.1 mm
Weight 17.86 lb / 8.1 Kg
Recommended Enclosure Volume 40 - 65 Litres
Shipping Weight 19.5 lb / 8.85 Kg
Packing Carton Dimensions (W) 440 (D) 440 (H) 220 mm
