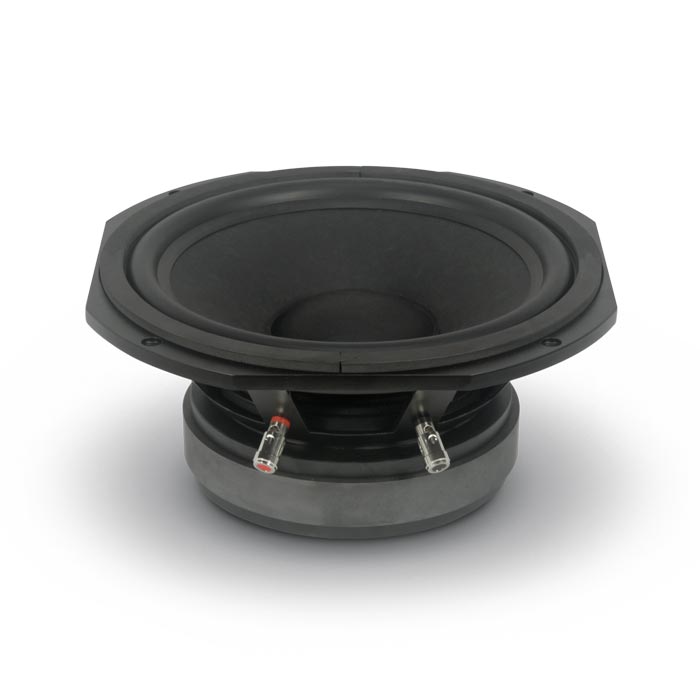

SOVEREIGN PRO 10BM

Bass Driver

Data Sheet
(0 Reviews)  Review this item
£POA
RRP Inc. VAT
AVAILABILITY : OUT OF STOCK
  • DISCONTINUED. Available for SPECIAL ORDER / OEM only.
  • Robber roll surround.
  • Long throw motor.

The Pro 10BM is intended for use in two-way ported enclosures. The driver combined with Fane compression driver and horn offers excellent tonal character throughout its active bandwidth. The unit features die cast chassis with long throw motor system and high linearity suspension allowing solid bass reproduction at high-power levels. The specially formulated cone pulp allows this driver to give a warm and smooth response throughout the bass frequency range The Pro 10BM is designed for use in 25 to 40 Litre ported enclosures and features a 2.5 inch voice coil, 400 Watt power handling and 93 dB sensitivity.



  • Please enquire about alternative impedances.
  • A.E.S. power handling test. Pink noise bandpass filtered at 12 dB per octave with cutoff frequencies of 45 Hz and 450Hz. Driver mounted in free air, test signal applied at rated power for two hours.

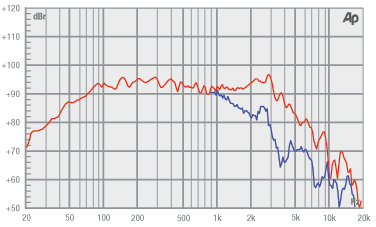

  • Please note that the frequency response measurements are supplied for comparison only and are not a measure of the low frequency performance which may be achieved in a fully optimised system.
Electro Acoustic Specifications
Nominal Chassis Diameter 10" / 254 mm

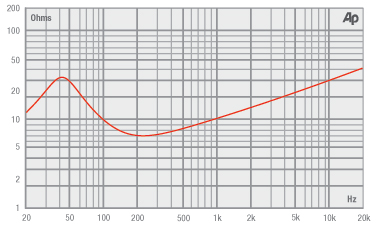

Impedance 8 Ω
Power Handling 400 W (A.E.S.)
Peak Power (6dB Crest Factor) 1600 W (A.E.S.)
Usable Frequency Range (-6dB) 40 Hz - 3 kHz
Sensitivity (1W - 1m) 93 dB
Moving Mass (inc. Air Load) 64 grams
Minimum Impedance (Zmin) 5.2 Ω
Effective Piston Diameter 8.5" / 215.9 mm
Magnet Weight 81 oz
Magnetic Gap Depth 0.39" / 9.91 mm
Flux Density 1.15 Tesla
Coil Winding Height 0.73" / 18.54 mm
Voice Coil Diameter 2.5" / 63.5 mm
Speaker Type Bass Driver
Thiele Small Parameters (TSPs)
FS 41 Hz
Re 3.4 Ω
QMS 1.51
QES 0.19
QTS 0.172
Vas 45 Litres
Vd 0.28 Litres
CMS 0.24 mm/N
BL 17 T/m
MMS 63 grams
Xmax 7.7 mm
Sd 363 cm2
Efficiency 1.60%
Le 1.65 mH
EBP 215.79 Hz
Materials of Construction
Coil Former Material Glass Fibre
Voice Coil Material Copper
Magnet Material Ferrite
Chassis Material Die-cast Aluminium
Cone Material Paper
Surround / Edge Termination Rubber Roll
Dust Dome Material Paper
Connectors Push-button Spring Terminals
Polarity Positive voltage at red terminal causes forward motion of cone
Mounting / Shipping Information
Overall Diameter 11.14" / 283
Width Across Flats 10.35" / 263 mm
Flange Height 0.305" / 7.8 mm
Baffle Hole Diameter F/M 8.97" / 227.83 mm
Baffle Hole Diameter R/M 10.13" / 257.30 mm
Gasket Supplied Front
Outer Fixing Holes 4x ø 5.5 mm on 270 mm PCD
Inner Fixing Holes Not Applicable
Depth 4.74" / 120.4 mm
Weight 15.65 lb / 7.1 Kg
Recommended Enclosure Volume 15 - 30 Litres
Shipping Weight 17 lb / 7.71 Kg
Packing Carton Dimensions (W) 275 (D) 275 (H) 150 mm
DescriptionSizeFormatGet File
Fane Sovereign Pro 10BM Datasheet0.25Mb.pdfDOWNLOAD
