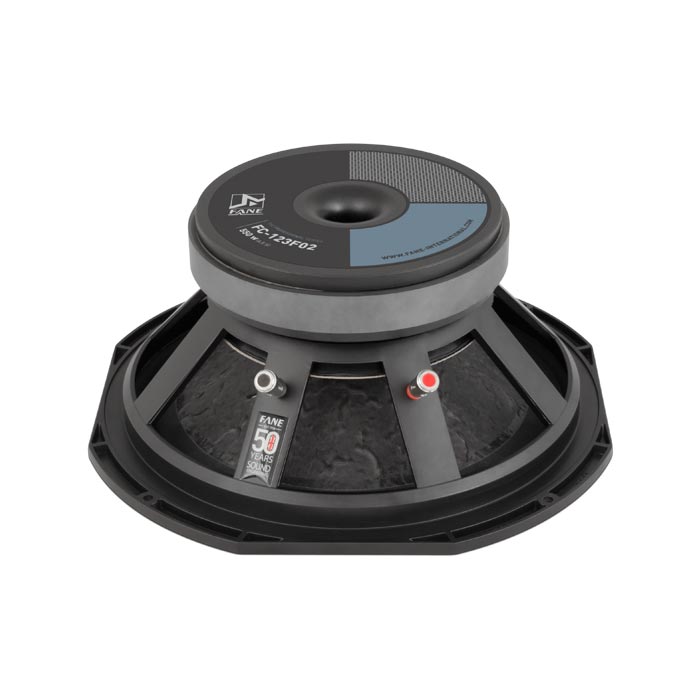

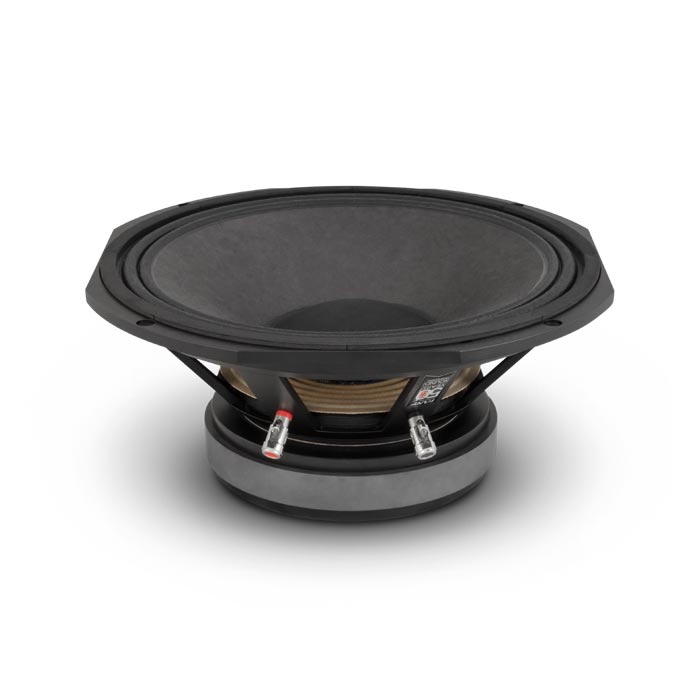

Fane FC123F02 Fane FC123F02
TFane FC123F02 TFane FC123F02


Bass Mid Driver

Data Sheet
(0 Reviews)  Review this item
  • 1100 W Program Power.
  • 98 dB Sensitivity (1W/1m).
  • Versatile unit for bass applications or two-way ported enclosures of 25-80 Litres.
  • Optimised non-inductive motor system efficiently controls magnetic flux and reduces third-harmonic and intermodulation distortion.
  • Designed to provide warm tonal character with dynamic, smooth detailed bass reproduction.
  • Copper shorting ring provides extended frequency range up to 4 kHz.
  • 3-inch Inside/ outside windings CCAW voice coil.

The FC-123F02 is intended for use as a very high output bass mid driver in two-way ported enclosures and also as a bass driver in multi-way systems. The unit features a 3 inch 'sandwich' inside and outside windings voice coil driven by a non-inductive motor system which dramatically reduces third-harmonic and intermodulation distortion. The cone membrane is state of the art material that allows the driver to combine high sensitivity with the structural integrity required to produce undistorted low frequencies at high output levels. The mechanical and electrical properties of the unit have been carefully optimised to allow extended low frequency output up to its rated power handling of 550 Watts (A.E.S) continuous, with peak power handling in excess of 2200 Watts. The driver exhibits an average sensitivity of 98 dB and is best used in ported enclosures of 25 to 80 Litres.


  • Please enquire about alternative impedances.
  • A.E.S. power handling test. Pink noise bandpass filtered at 12 dB per octave with cutoff frequencies of 45 Hz and 450 Hz. Driver mounted in free air, test signal applied at rated power for two hours.

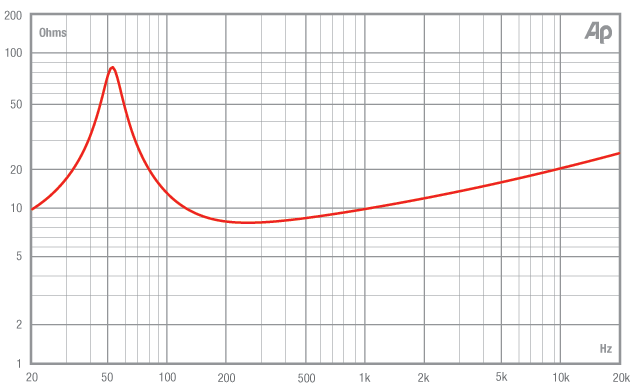

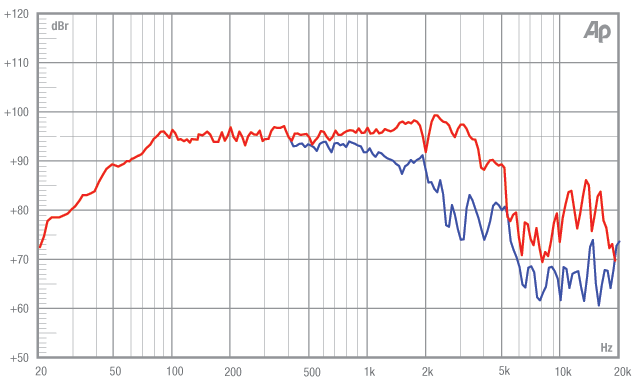

  • Please note that the frequency response measurements are supplied for comparison only and are not a measure of the low frequency performance which may be achieved in a fully optimised system.
Electro Acoustic Specifications
Nominal Chassis Diameter 12" / 304.8 mm
Impedance 8 Ω
Power Handling 550 W (A.E.S.)
Peak Power (6dB Crest Factor) 2200 W (A.E.S.)
Usable Frequency Range (-6dB) 40 Hz - 4 kHz
Sensitivity (1W - 1m) Wideband 98 dB
Moving Mass (inc. Air Load) 52 grams
Minimum Impedance (Zmin) 8.4 Ω
Effective Piston Diameter 10.31" / 261.87 mm
Magnet Weight 91.71 oz
Magnetic Gap Depth 0.35" / 9 mm
Flux Density 1.16 Tesla
Coil Winding Height 0.75" / 19 mm
Voice Coil Diameter 3.0" / 76.2 mm
Speaker Type Bass Mid Driver
Thiele Small Parameters (TSPs)
FS 51 Hz
Re 5.6 Ω
QMS 5.1
QES 0.365
QTS 0.341
Vas 76 Litres
Vd 0.42 Litres
CMS 0.191 mm/N
BL 16 T/m
MMS 51 grams
Xmax 8 mm
Sd 530 cm2
Efficiency 2.70%
Le 1.17 mH
EBP 139.73 Hz
Materials of Construction
Coil Former Material Glass Fibre
Voice Coil Material CCAW - Inside/ Outside Windings
Magnet Material Ferrite
Chassis Material Die-cast Aluminium
Cone Material Paper
Surround / Edge Termination Polyvinyl Damped Dbl. Half Roll Linen
Dust Dome Material Paper
Connectors Push-button Spring Terminals
Polarity Positive voltage at red terminal causes forward motion of cone
Mounting / Shipping Information
Overall Diameter 13" / 330.2 mm
Width Across Flats 12.19" / 309.62 mm
Flange Height 0.305" / 7.8 mm
Baffle Hole Diameter F/M 11.03" / 280.16 mm
Baffle Hole Diameter R/M 10.13" / 257.30 mm
Gasket Supplied Front & Rear
Outer Fixing Holes 4x ø 0.218" on 12.5" PCD / 4x ø 5.5 mm on 317.5 mm PCD
Inner Fixing Holes Not Applicable
Depth 5.2" / 132 mm
Weight 17.2 lb / 7.8 Kg
Recommended Enclosure Volume 25 - 50 Litres
Shipping Weight 19.18 lb / 8.7 Kg
Packing Carton Dimensions (W) 330 (D) 330 (H) 170 mm
