This year at Prolight + Sound Guangzhou 2016 Fane officially unveiled three new models. The FC-185F01, FC-185ND01 and CD-1544N-P. Also on display were several prototype units, planned for release later in the year. Full technical specifications are available using the links below for the three official launch models. A brand new product brochures for 2016 are also now available on our website. Sample and initial stock orders are now being taken, to get your hands on these latest drivers please contact our sales team.
 |  |

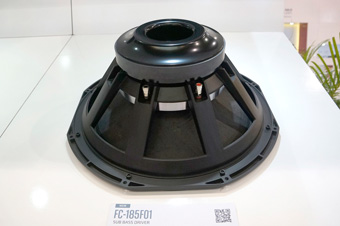

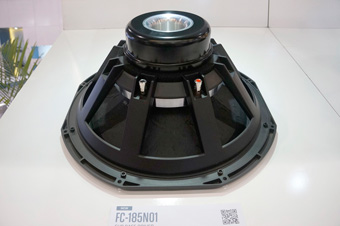

The FC-185F01, 900 W, Sub Bass Driver | The FC-185ND01, 1200 W, Sub Bass Driver |
FC-185F01
18" | Sub Bass Driver | 900 W (AES) | Ferrite Magnet
Built on our new 18-inch chassis design, the FC-185F01 is an efficient high power handling driver specially designed to provide powerful and accurate bass with low distortion and low power compression. Suitable for bass reflex or horn loaded cabinet designs, the driver exhibits smooth tonal character combined with a fast response time. The FC-185F01 utilises an optimised fibre loaded cone assembly controlled by a fully optimised multi roll surround. The units spaced dual suspension configuration ensures excellent control during large excursions. A fully optimised motor structure built around a high grade Y35 magnet ensures maximum flux yield from compact design and generates the minimum amount of flux modulation. The cast chassis base venting and large motor venting ensures efficient ventilation of the unit to keep power compression to a minimum.
View Full Specifications Here...
FC-185ND01
18" | Sub Bass Driver | 1200 W (AES) | Neodymium Magnet
The FC-185ND01 also features on our new 18-inch chassis design and is suitable for bass reflex or horn loaded designs, providing powerful and accurate bass with low distortion. The specially designed lightweight, neodymium motor system allows efficient high-power handling with reduced power compression thanks to an aluminium core heatsink. The driver exhibits smooth tonal character combined with an ultra-fast response time. The FC-185ND01 utilises an optimised fibre loaded cone assembly controlled by a fully optimised multi roll surround. The units spaced dual suspension configuration ensures excellent control during large excursions. A fully optimised motor structure built around a high grade Y35 magnet ensures maximum flux yield from compact design and generates the minimum amount of flux modulation. The cast chassis base venting and large motor venting ensures efficient ventilation of the unit to keep power compression to a minimum.
View Full Specifications Here...
CD-1544N-P
1" Exit | Compression Driver | 50 W (AES) | Neodymium Magnet | PAR Diaphragm Material
The CD-1544N-P is a compact unit suitable for professionals who are looking to achieve high sound pressure level performance with clarity of sound. The unit uses an aluminium mounting plate to achieve the industry standard 1 inch (25.4 mm) exit, this plate can be removed for custom horn configurations.
Combining high BL force factor and a lightweight Polyarylate diaphragm assembly has resulted in a high output compression driver that possesses well defined frequency response with extended bandwidth to 18 kHz. The CD-1544N-P is optimised for high performance system designs and has a rated low frequency response limit of 1.5 kHz.
The throat diameter and fixings are industry standard size and will match to commercially available high frequency horns. The Neodymium based permanent magnetic system produces a very high efficiency to weight and size ratio. This makes the CD-1544N-P ideal for high level professional touring applications as well as high level fixed installation.
View Full Specifications Here...
