SOVEREIGN PRO 8MN

Mid Range Driver

(0 Reviews) Review this item

£POA

RRP Inc. VAT

AVAILABILITY : OUT OF STOCK

SPECIAL ORDER ONLY. MINIMUM ORDER QUANTITY APPLIES.
Please contact info@fane-international.com for order information.

Suitable for line array and small sealed enclosures.
2" Voice coil mid range unit driven by a lightweight Neodymium motor system.
Weighs only 1.95 Kg.
Exceptional efficiency, power handling and frequency coverage from compact design.
High output and low distortion from 90Hz to 5kHz.
Rugged die cast chassis.
Extended usable frequency.

DESCRIPTION
SPECIFICATION
GRAPHS
DOWNLOADS
REVIEWS
RELATED PRODUCTS

Exceptional efficiency, power handling and frequency coverage from a compact and lightweight unit. The Sovereign Pro 8MN provides high output and low distortion from 90Hz to 5kHz with smooth tonal character. Ideal for small format line array or dedicated mid unit in multi way system configuration.

Please enquire about alternative impedances.
A.E.S. power handling test. Pink noise bandpass filtered at 12 dB per octave with cutoff frequencies of 100 Hz and 1000 Hz. Driver mounted in free air, test signal applied at rated power for two hours.

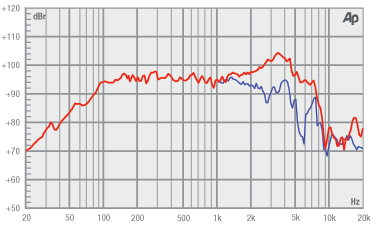

Please note that the frequency response measurements are supplied for comparison only and are not a measure of the low frequency performance which may be achieved in a fully optimised system.

Electro Acoustic Specifications
Nominal Chassis Diameter	8" / 203.2 mm
Impedance	4 /8 /16 Ω
Power Handling	250 W (A.E.S.)
Peak Power (6dB Crest Factor)	1000 W (A.E.S.)
Usable Frequency Range (-6dB)	90 Hz - 5 kHz
Sensitivity (1W - 1m) Wideband	99 dB
Moving Mass (inc. Air Load)	21.76 grams
Minimum Impedance (Zmin)	7 Ω
Effective Piston Diameter	6.46" / 164.08 mm
Magnet Weight	N/a
Magnetic Gap Depth	0.35" / 9 mm
Flux Density	1.1 Tesla
Coil Winding Height	0.47" / 12 mm
Voice Coil Diameter	2.0" / 50.8 mm
Speaker Type	Mid Range Driver
Speaker Series	The Neodymium Series
Program Power	500 W (A.E.S.)
Sensitivity (1W / 1m) Working band

Thiele Small Parameters (TSPs)
FS	80 Hz
Re	5.5 Ω
QMS	8.86
QES	0.41
QTS	0.4
Vas	13.62 Litres
Vd	0.08 Litres
CMS	0.188 mm/N
BL	12.5 T/m
MMS	21.56 grams
Xmax	3.5 mm
Sd	225.9 cm²
Efficiency	1.75%
Le	1.13 mH
EBP	195.12 Hz

Materials of Construction
Coil Former Material	Glass Fibre
Voice Coil Material	CCAW
Magnet Material	Neodymium
Chassis Material	Die-cast Aluminium
Cone Material	Paper
Surround / Edge Termination	Polyvinyl Damped Dbl. Half Roll Linen
Dust Dome Material	Paper
Connectors	Push-button Spring Terminals
Polarity	Positive voltage at red terminal causes forward motion of cone

Mounting / Shipping Information
Overall Diameter	8.9" / 226 mm
Width Across Flats	8.25" / 209.5 mm
Flange Height	0.28" / 7 mm
Baffle Hole Diameter F/M	7.33" / 186 mm
Baffle Hole Diameter R/M	N/A
Gasket Supplied	Front & Rear
Outer Fixing Holes	4x ø 5.5 mm on 214 mm PCD
Inner Fixing Holes	Not Applicable
Depth	3.6" / 91.44 mm
Weight	4.3 lb / 1.95 Kg
Recommended Enclosure Volume	1.5 - 5 litres
Shipping Weight	5.2 lb / 2.36 Kg
Packing Carton Dimensions	(W) 235 (D) 235 (H) 130 mm

Description	Size	Format	Get File
Fane Sovereign Pro 8MN Datasheet	0.28Mb	.pdf	DOWNLOAD
