Fane Sovereign Pro 10M Fane Sovereign Pro 10M
TFane Sovereign Pro 10M TFane Sovereign Pro 10M


Mid Range Driver

Data Sheet
(0 Reviews)  Review this item

Please contact for order information.
  • 600 W Program Power.
  • 98.5 dB Sensitivity (1W/1m).
  • Perfect mid-range driver for the most demanding applications.
  • Suitable for line array applications.
  • Smooth frequency response with low distortion.
  • UK manufactured cone with optimised pulp offering increased strength, durability and performance.
  • Large magnet structure and cast aluminium frame ensures efficient heat dissipation and low power compression for output levels of up to 124dB(5).
  • Optimised for sealed enclosure designs of 5-15 Litres.
  • 2.5-inch Inside/ outside windings aluminium voice coil.

The Sovereign Pro 10M is designed as a dedicated mid range driver delivering high output, low distortion from 200 Hz to 3.5 kHz. The 2.5" voice coil driver' benefits from an average sensitivity of 98.5 dB throughout the units active operating range. This combined with an A.E.S power handling of 300 watts ensures perfect mid range reproduction for the most demanding applications. The large magnet structure and cast aluminium frame ensure efficient heat dissipation and gives the Sovereign Pro 10M low power compression and maximum output levels of up to 124 dB. The Sovereign Pro 10M is best suited to sealed enclosures 5 to 15 Litres.


  • Please enquire about alternative impedances.
  • A.E.S. power handling test. Pink noise bandpass filtered at 12 dB per octave with cutoff frequencies of 100 Hz and 1000 Hz. Driver mounted in free air, test signal applied at rated power for two hours.
  • Please note that the frequency response measurements are supplied for comparison only and are not a measure of the low frequency performance which may be achieved in a fully optimised system.
Electro Acoustic Specifications
Nominal Chassis Diameter 10" / 254 mm
Impedance 4 /8 /16 Ω
Power Handling 300 W (A.E.S.)
Peak Power (6dB Crest Factor) 1200 W (A.E.S.)
Usable Frequency Range (-6dB) 200 Hz - 3.5 kHz
Sensitivity (1W - 1m) Wideband 98.5 dB
Moving Mass (inc. Air Load) 37 grams

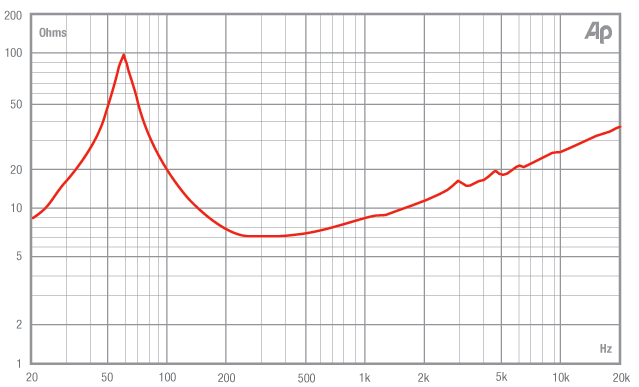

Minimum Impedance (Zmin) 7 Ω
Effective Piston Diameter 8.19" / 208.02 mm
Magnet Weight 78 oz
Magnetic Gap Depth 0.31" / 8 mm
Flux Density 1.24 Tesla
Coil Winding Height 0.47" / 12 mm
Voice Coil Diameter 2.5" / 63.5 mm
Speaker Type Mid Range Driver
Speaker Series The Professional Series
Program Power 600 W (A.E.S.)
Sensitivity (1W / 1m) Working band
Thiele Small Parameters (TSPs)
FS 56 Hz
Re 5.6 Ω
QMS 4.9
QES 0.286
QTS 0.27
Vas 37 Litres
Vd 0.068 Litres
CMS 0.231 mm/N
BL 15.8 T/m
MMS 35 grams
Xmax 2 mm
Sd 340 cm2
Efficiency 2.46%
Le 1.45 mH
EBP 195.8 Hz
Materials of Construction
Coil Former Material Glass Fibre
Voice Coil Material Aluminium - Inside/ Outside
Magnet Material Ferrite
Chassis Material Die-cast Aluminium
Cone Material Curvilinear Paper
Surround / Edge Termination Polyvinyl Damped Half Roll Linen
Dust Dome Material Solid Paper
Connectors Push-button Spring Terminals
Polarity Positive voltage at red terminal causes forward motion of cone
Mounting / Shipping Information
Overall Diameter 11.14" / 283 mm
Width Across Flats 10.35" / 263 mm
Flange Height 0.305" / 7.8 mm
Baffle Hole Diameter F/M 8.97" / 227.83 mm
Baffle Hole Diameter R/M N/A
Gasket Supplied Rear
Outer Fixing Holes 4x ø 0.218" on 10.625" PCD / 4x ø 5.5 mm on 270 mm PCD
Inner Fixing Holes Not Applicable
Depth 4.33" / 110 mm
Weight 13.34 lb / 6.05 Kg
Recommended Enclosure Volume 0.17 - 0.52 cu ft / 5- 15 Litres
Shipping Weight 14.77 lb / 6.70 Kg
Packing Carton Dimensions (W) 275 (D) 275 (H) 150 mm
DescriptionSizeFormatGet File
Fane Sovereign Pro 10M Datasheet0.19Mb.pdfDOWNLOAD
