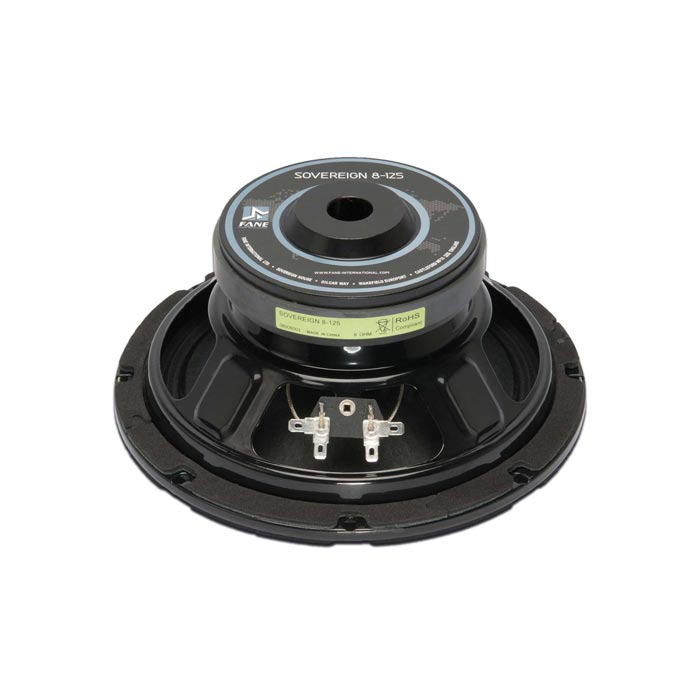

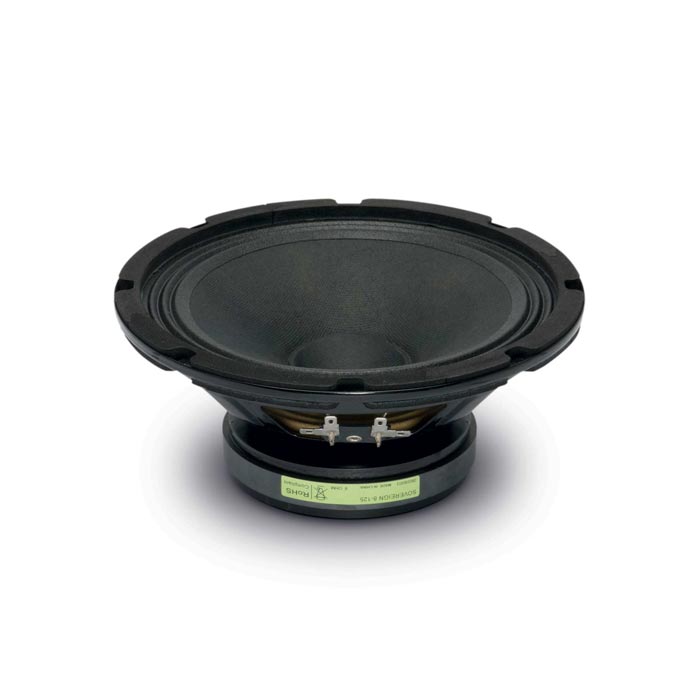

Fane Sovereign 8-125 Fane Sovereign 8-125
TFane Sovereign 8-125 TFane Sovereign 8-125


Bass / Mid Range Driver

Data Sheet
(0 Reviews)  Review this item

Please contact for order information.
  • Medium-power driver ideal for use in pro-sound applications.
  • Works well as a mid in small sealed boxes and as a mid/ bass driver in vented boxes.
  • Optimised cone pulp offering increased strength, durability and performance.
  • Please enquire about alternative impedances.
  • A.E.S. power handling test. Pink noise bandpass filtered at 12 dB per octave with cutoff frequencies of 60 Hz and 600 Hz. Driver mounted in free air, test signal applied at rated power for two hours.

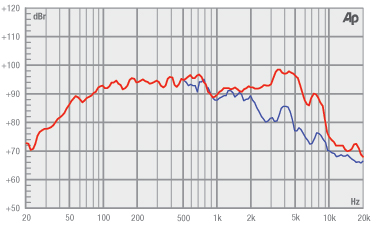

  • Please note that the frequency response measurements are supplied for comparison only and are not a measure of the low frequency performance which may be achieved in a fully optimised system.
Electro Acoustic Specifications
Nominal Chassis Diameter 8" / 203.2 mm
Impedance 8 Ω
Power Handling 125 W (A.E.S.)
Peak Power (6dB Crest Factor) 500 W (A.E.S.)
Usable Frequency Range (-6dB) 60 Hz - 7 kHz
Sensitivity (1W - 1m) Wideband 94 dB
Moving Mass (inc. Air Load) 19 grams

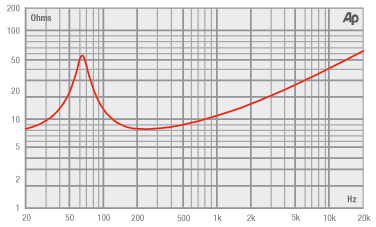

Minimum Impedance (Zmin) 7.6 Ω
Effective Piston Diameter 6.496" / mm
Magnet Weight 20 oz
Magnetic Gap Depth 0.23" / 5.84 mm
Flux Density 1.1 Tesla
Coil Winding Height 0.51" / 12.95 mm
Voice Coil Diameter 1.5" / 38.1 mm
Speaker Type Bass / Mid Range Driver
Speaker Series The Professional Series
Program Power 250 W (A.E.S.)
Sensitivity (1W / 1m) Working band
Thiele Small Parameters (TSPs)
FS 65 Hz
Re 6.7 Ω
QMS 6.6
QES 0.75
QTS 0.68
Vas 19.5 Litres
Vd 0.074 Litres
CMS 0.3 mm/N
BL 8.5 T/m
MMS 19 grams
Xmax 3.45 mm
Sd 213 cm2
Efficiency 0.70%
Le 1.276 mH
EBP 86.67 Hz
Materials of Construction
Coil Former Material Glass Fibre
Voice Coil Material Copper
Magnet Material Ferrite
Chassis Material Pressed Stee
Cone Material Paper
Surround / Edge Termination Polyvinyl Damped Dbl. Half Roll Linen
Dust Dome Material Paper
Connectors Solder Tag
Polarity Positive voltage at red terminal causes forward motion of cone
Mounting / Shipping Information
Overall Diameter 8.18" / 207.77 mm
Width Across Flats N/A
Flange Height 0.27" / 6.9 mm
Baffle Hole Diameter F/M 7.24" / 183.89 mm
Baffle Hole Diameter R/M 7.24" / 183.89 mm
Gasket Supplied Front & Rear
Outer Fixing Holes 8x ø 5.5 mm on 7.79" / 197.8 mm PCD
Inner Fixing Holes Not Applicable
Depth 3.7" / 93.98 mm
Weight 3.85 lb / 1.75 Kg
Recommended Enclosure Volume 0.35 - 0.88 cu ft / 10 - 25 Litres
Shipping Weight 5.51 lb / 2.5 Kg
Packing Carton Dimensions (W) 235 (D) 235 (H) 130 mm
DescriptionSizeFormatGet File
Fane Sovereign 8-125 Datasheet0.30Mb.pdfDOWNLOAD
