Fane Sovereign 15-500 Fane Sovereign 15-500
TFane Sovereign 15-500 TFane Sovereign 15-500

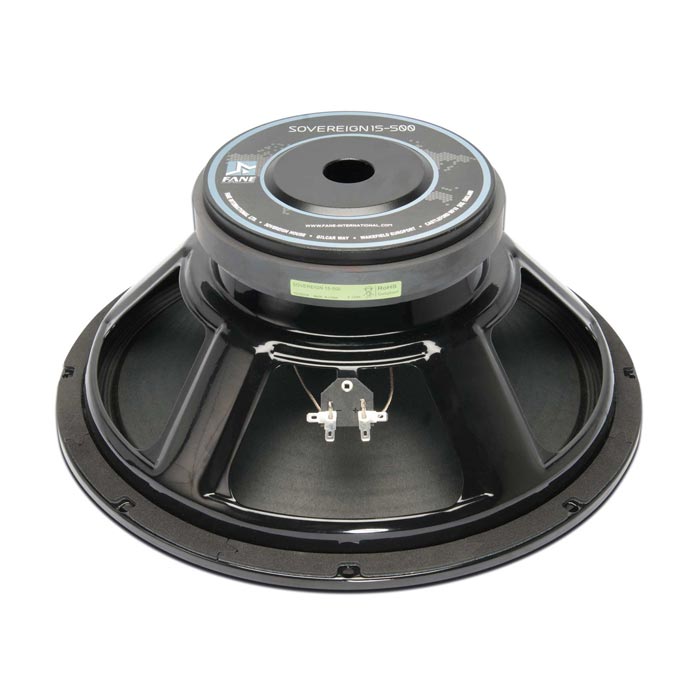

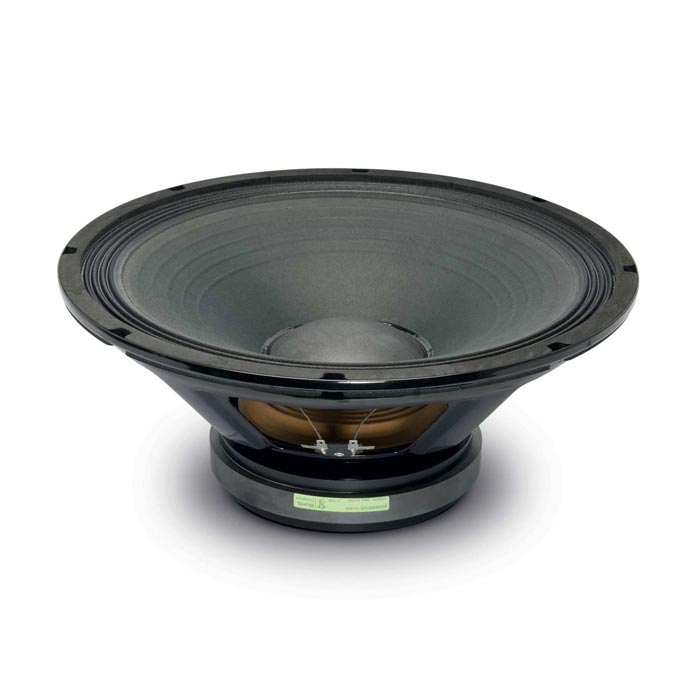

SOVEREIGN 15-500

Bass Driver

Data Sheet
(0 Reviews)  Review this item
£POA
RRP Inc. VAT
AVAILABILITY : OUT OF STOCK

SPECIAL ORDER ONLY. MINIMUM ORDER QUANTITY APPLIES.
Please contact info@fane-international.com for order information.
  • High-power woofer with outstanding SPL output.
  • For use in 2 way pro-sound applications.
  • Ideally suited for medium to large vented enclosures.
  • Works well in a sealed box as a mid/bass driver or as a floor wedge.
  • Great for bass guitar in vented cabinets.
  • Optimised cone pulp offering increased strength, durability and performance.
  • Please enquire about alternative impedances.
  • A.E.S. power handling test. Pink noise bandpass filtered at 12 dB per octave with cutoff frequencies of 40 Hz and 400 Hz. Driver mounted in free air, test signal applied at rated power for two hours.

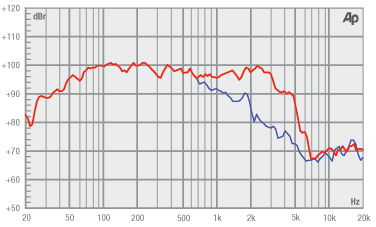

  • Please note that the frequency response measurements are supplied for comparison only and are not a measure of the low frequency performance which may be achieved in a fully optimised system.
Electro Acoustic Specifications
Nominal Chassis Diameter 15" / 381 mm

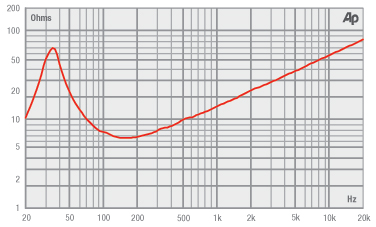

Impedance 8 Ω
Power Handling 500 W (A.E.S.)
Peak Power (6dB Crest Factor) 2000 W (A.E.S.)
Usable Frequency Range (-6dB) 40 Hz - 4 kHz
Sensitivity (1W - 1m) Wideband 99 dB
Moving Mass (inc. Air Load) 97.6 grams
Minimum Impedance (Zmin) 6.2 Ω
Effective Piston Diameter 15.03" / 381.76 mm
Magnet Weight 80 oz
Magnetic Gap Depth 0.39" / 9.90 mm
Flux Density 1.1 Tesla
Coil Winding Height 0.70" / 17.78 mm
Voice Coil Diameter 3.0" / 76.2 mm
Speaker Type Bass Driver
Speaker Series The Sovereign Series
Program Power 1000 W (A.E.S.)
Sensitivity (1W / 1m) Working band
Thiele Small Parameters (TSPs)
FS 35 Hz
Re 5.2 Ω
QMS 7.7
QES 0.35
QTS 0.34
Vas 220 Litres
Vd 0.49 Litres
CMS 0.212 mm/N
BL 17.86 T/m
MMS 97.65 grams
Xmax 3.45 mm
Sd 855 cm2
Efficiency 2.90%
Le 2.19 mH
EBP 100 Hz
Materials of Construction
Coil Former Material Glass Fibre
Voice Coil Material Copper
Magnet Material Ferrite
Chassis Material Pressed Steel
Cone Material Curvilinear Paper
Surround / Edge Termination Polyvinyl Damped Multi Roll Linen
Dust Dome Material Paper
Connectors Solder Tag
Polarity Positive voltage at red terminal causes forward motion of cone
Mounting / Shipping Information
Overall Diameter 15" / 381 mm
Width Across Flats N/A
Flange Height 0.35" / 8.89 mm
Baffle Hole Diameter F/M 13.85" / 351.79 mm
Baffle Hole Diameter R/M 13.85" / 351.79 mm
Gasket Supplied Front & Rear
Outer Fixing Holes 8x ø 6.35 mm on 14.56" / 369.2 mm PCD
Inner Fixing Holes Not Applicable
Depth 6.41" / 162.81 mm
Weight 16.20 lb / 7.7 Kg
Recommended Enclosure Volume 1.76 - 4.41 cu ft / 50 - 125 Litres
Shipping Weight 18.96 lb / 8.6 Kg
Packing Carton Dimensions (W) 410 (D) 410 (H) 210 mm
DescriptionSizeFormatGet File
Fane Sovereign 15-500 Datasheet0.31Mb.pdfDOWNLOAD
