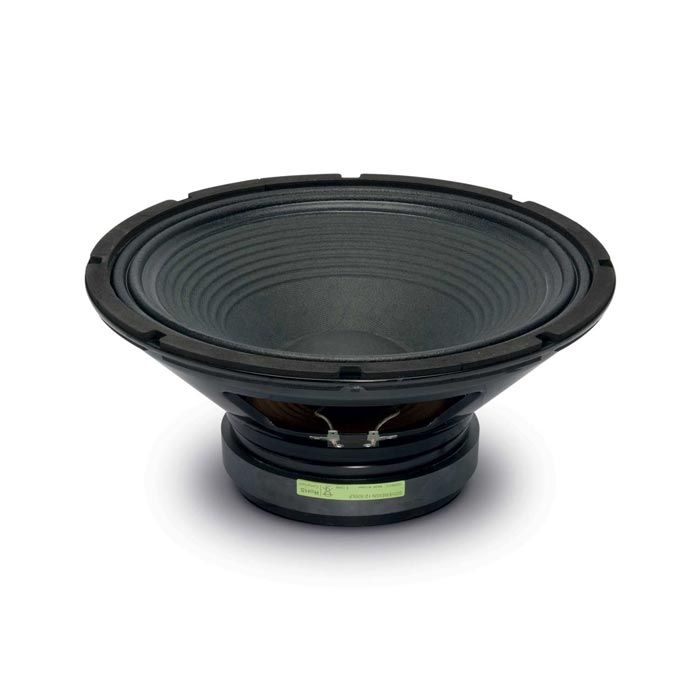

Fane Sovereign 12-500LF Fane Sovereign 12-500LF
TFane Sovereign 12-500LF TFane Sovereign 12-500LF

SOVEREIGN 12-500LF

Bass Driver

Data Sheet
(1 Reviews)  Review this item
£POA
RRP Inc. VAT
AVAILABILITY : IN STOCK
  • 1000 W Program Power.
  • 95 dB Sensitivity (1W/1m).
  • High-power bass driver ideally suited for use in two-way ported enclosures.
  • Optimised cone pulp offers increased strength, durability and performance.
  • Also works well in monitor or bass guitar applications.
  • 2.5-inch Copper voice coil.
  • Please enquire about alternative impedances.
  • A.E.S. power handling test. Pink noise bandpass filtered at 12 dB per octave with cutoff frequencies of 40 Hz and 400 Hz. Driver mounted in free air, test signal applied at rated power for two hours.
  • Please note that the frequency response measurements are supplied for comparison only and are not a measure of the low frequency performance which may be achieved in a fully optimised system.
Electro Acoustic Specifications
Nominal Chassis Diameter 12" / 304.8 mm
Impedance 8 Ω
Power Handling 500 W (A.E.S.)
Peak Power (6dB Crest Factor) 2000 W (A.E.S.)
Usable Frequency Range (-6dB) 38 Hz - 5 kHz
Sensitivity (1W - 1m) Wideband 95 dB
Moving Mass (inc. Air Load) 75 grams
Minimum Impedance (Zmin) 7.4 Ω
Effective Piston Diameter 10.67" / 271.01 mm
Magnet Weight 56 oz
Magnetic Gap Depth 0.39" / 10 mm
Flux Density 0.97 Tesla
Coil Winding Height 0.74" / 19 mm
Voice Coil Diameter 2.5" / 63.5 mm
Speaker Type Bass Driver
Speaker Series The Sovereign Series
Program Power 1000 W (A.E.S.)
Sensitivity (1W / 1m) Working band
Thiele Small Parameters (TSPs)
FS 50 Hz
Re 5.9 Ω
QMS 7.5
QES 0.53
QTS 0.51
Vas 66 Litres
Vd 0.298 Litres
CMS 0.14 mm/N
BL 16.37 T/m
MMS 75 grams
Xmax 5.5 mm
Sd 576.1 cm2
Efficiency 1.50%
Le 2.36 mH
EBP 94.34 Hz
Materials of Construction
Coil Former Material Glass Fibre
Voice Coil Material Copper
Magnet Material Ferrite
Chassis Material Pressed Steel
Cone Material Straight Polycellulose Ribbed Cone
Surround / Edge Termination Polyvinyl Damped Multi Roll. Poly Cotton
Dust Dome Material Paper
Connectors Solder Tag
Polarity Positive voltage at red terminal causes forward motion of cone
Mounting / Shipping Information
Overall Diameter 12" / 304.8 mm
Width Across Flats N/A
Flange Height 0.27" / 6.9 mm
Baffle Hole Diameter F/M 11.25" / 285.75 mm
Baffle Hole Diameter R/M 11.25" / 285.75 mm
Gasket Supplied Front & Rear
Outer Fixing Holes 8x ø 7.0 mm on 11.75" / 298 mm PCD
Inner Fixing Holes Not Applicable
Depth 5.69" / 144.52 mm
Weight 11.02 lb / 5.0 Kg
Recommended Enclosure Volume 1.05 - 2.64 cu ft / 30 - 75 Litres
Shipping Weight 12.89 lb / 5.85 Kg
Packing Carton Dimensions (W) 330 (D) 330 (H) 170 mm
Awesome Mid and Low driver
Reviewer / FromEngland / Date27 Dec 2016
I'm using it both as a subwoofer driver and as a top driver. This thing totally astonished me for thomann the price, the sound reproduction of it is amazing, and you really can't complain about the build quality either. Performance as a subwoofer driver: I didn't expect such a clear and deep sound, especially since the manufacturer's specifications claim a response from 38Hz to 5kHz, but thomann i can totally see where the "LF" part in the name is coming from, in the subwoofer enclosure i use it in it's playing loud and deep down to about 30Hz, which amazed me quite a bit. Performance as a Top/Fullrange cab mid driver: It's playing thomann very clean and accurately (this will ofcourse depend on your enclosure) up to the claimed 5kHz It also sounds very lovely, every detail i wanted it to have, it actually does have. The only thing it's missing just a little bit is ruggedness/build quality, be sure to thomann not screw it in too hard or you'll bend the mounting part of the basket. Otherwise, i do recommend this driver alot. Pro's: - Very clean and nicely sounding driver - Nice and clean bass/mids Cons: - Mounting place for the basket is kind-of bendable thomann
DescriptionSizeFormatGet File
Fane Sovereign 12-500LF Datasheet0.19Mb.pdfDOWNLOAD
