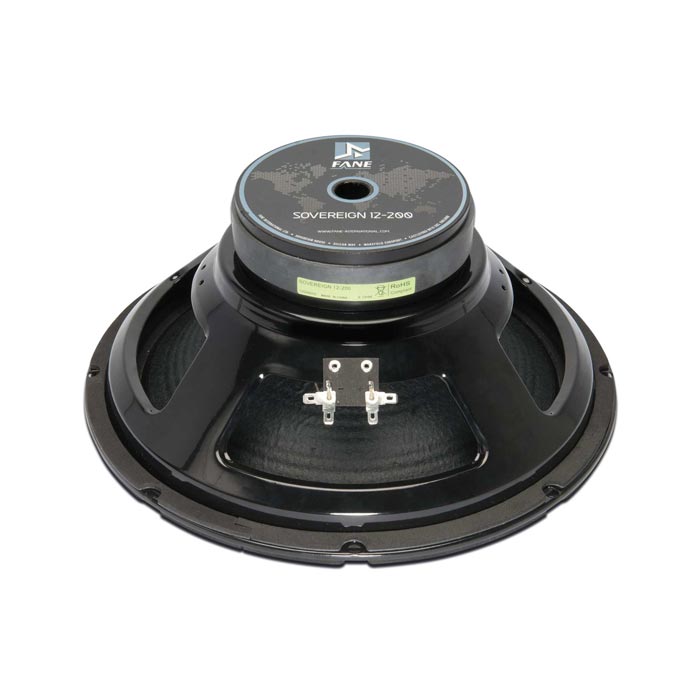

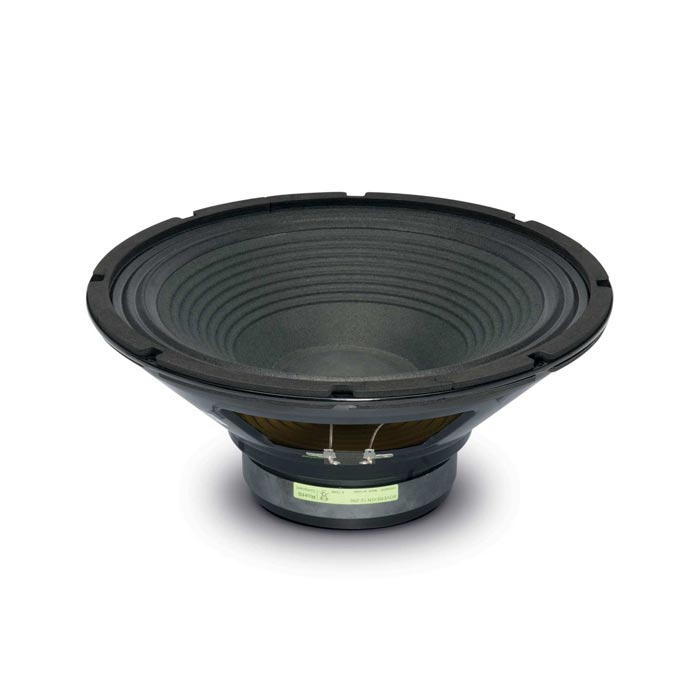

Fane Sovereign 12-200 Fane Sovereign 12-200
TFane Sovereign 12-200 TFane Sovereign 12-200


Bass / Mid Range Driver

Data Sheet
(0 Reviews)  Review this item

Please contact for order information.
  • Medium-power driver ideal for use in pro-sound applications.
  • Intended for use as a mid/ bass driver and in medium sized vented boxes as a woofer.
  • Optimised cone pulp offering increased strength, durability and performance.
  • Please enquire about alternative impedances.
  • A.E.S. power handling test. Pink noise bandpass filtered at 12 dB per octave with cutoff frequencies of 45 Hz and 450 Hz. Driver mounted in free air, test signal applied at rated power for two hours.

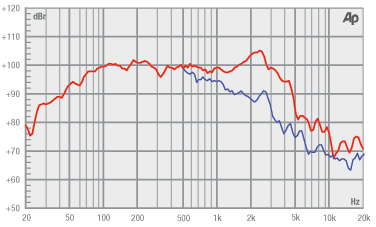

  • Please note that the frequency response measurements are supplied for comparison only and are not a measure of the low frequency performance which may be achieved in a fully optimised system.
Electro Acoustic Specifications
Nominal Chassis Diameter 12" / 304.8 mm
Impedance 8 Ω
Power Handling 200 W (A.E.S.)
Peak Power (6dB Crest Factor) 800 W (A.E.S.)
Usable Frequency Range (-6dB) 45 Hz - 4 kHz
Sensitivity (1W - 1m) Wideband 100 dB
Moving Mass (inc. Air Load) 44 grams

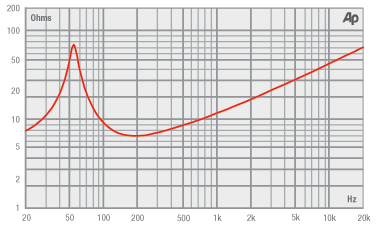

Minimum Impedance (Zmin) 7.4 Ω
Effective Piston Diameter 10.31" / 261.87 mm
Magnet Weight 38 oz
Magnetic Gap Depth 0.31" / 7.87 mm
Flux Density 1.0 Tesla
Coil Winding Height 0.59" / 14.98 mm
Voice Coil Diameter 2.0" / 50.8 mm
Speaker Type Bass / Mid Range Driver
Speaker Series The Sovereign Series
Program Power 400 W (A.E.S.)
Sensitivity (1W / 1m) Working band
Thiele Small Parameters (TSPs)
FS 45 Hz
Re 5.1 Ω
QMS 7.1
QES 0.472
QTS 0.44
Vas 103 Litres
Vd 0.291 Litres
CMS 0.25 mm/N
BL 12.3 T/m
MMS 44 grams
Xmax 5.5 mm
Sd 530 cm2
Efficiency 2.29%
Le 1.56 mH
EBP 95.34 Hz
Materials of Construction
Coil Former Material Glass Fibre
Voice Coil Material Copper
Magnet Material Ferrite
Chassis Material Pressed Steel
Cone Material Paper
Surround / Edge Termination Polyvinyl Damped Multi Roll Linen
Dust Dome Material Paper
Connectors Solder Tag
Polarity Positive voltage at red terminal causes forward motion of cone
Mounting / Shipping Information
Overall Diameter 12" / 304.8 mm
Width Across Flats N/A
Flange Height 0.27" / 6.9 mm
Baffle Hole Diameter F/M 11.25" / 285.75 mm
Baffle Hole Diameter R/M 11.25" / 285.75 mm
Gasket Supplied Front & Rear
Outer Fixing Holes 8x ø 7.0 mm on 11.75" / 298 mm PCD
Inner Fixing Holes Not Applicable
Depth 5.43" / 137.92 mm
Weight 7.71 lb / 3.5 Kg
Recommended Enclosure Volume 1.05 - 2.64 cu ft / 30 -75 Litres
Shipping Weight 9.47 lb / 4.3 Kg
Packing Carton Dimensions (W) 330 (D) 330 (H) 170 mm
DescriptionSizeFormatGet File
Fane Sovereign 12-200 Datasheet0.28Mb.pdfDOWNLOAD
