COLOSSUS 18XT5N

Bass Driver

Data Sheet
(0 Reviews)  Review this item
£POA
RRP Inc. VAT
AVAILABILITY : OUT OF STOCK
  • DISCONTINUED. Available for SPECIAL ORDER / OEM only.
  • 5" Voice coil.
  • Lightweight neodymium magnet assembly.
  • Weighs only 11.85 kg.
  • High BL, 28.4 T/m.
  • Ultimate high-output.
  • Low power compression.
  • Fibre loaded, UK manufactured cone offering increased strength, durability and performance.
  • Peak to peak travel of 60 mm.

The Colossus 18XT5N is intended for use as a high output bass driver in multi way systems and features a 5 inch 'sandwich' (inside and outside windings) voice coil, immersed in a symmetric magnetic field yielding increased linearity and lower distortion. This, coupled with laminated silicone suspensions, a large Xmax of 11.75 mm with peak to peak travel of 60 mm, ensures fast accurate bass at high levels of excursion. The cone membrane, manufactured from polycellulose, is much stronger and more durable than conventional paper pulp alternatives. This allows the driver to combine high-sensitivity with the structural integrity required to produce undistorted low frequencies at extreme sound pressure levels. The driver handles 1200 Watts (A.E.S.) continuous and can cope with peaks in excess of 4800 Watts. This is due to advanced thermal management in the form of vented die-cast chassis and increased motor system venting. These measures effectively remove heat from the voice coil, resulting in extremely low-power compression. The Colossus 18XT5N exhibits 98.5 dB sensitivity and can deliver bass down to 28 Hz (-6 dB) in a 200 Litre ported enclosure.



  • Please enquire about alternative impedances.
  • A.E.S. power handling test. Pink noise bandpass filtered at 12 dB per octave with cutoff frequencies of 30 Hz and 300 Hz. Driver mounted in free air, test signal applied at rated power for two hours.

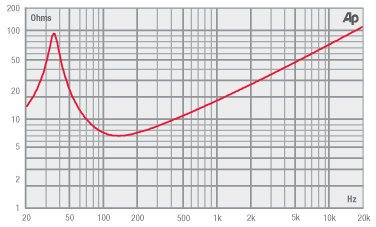

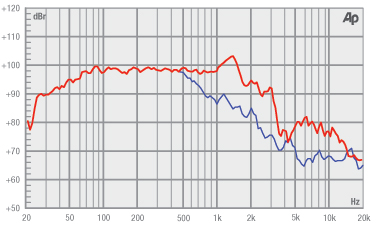

  • Please note that the frequency response measurements are supplied for comparison only and are not a measure of the low frequency performance which may be achieved in a fully optimised system.
Electro Acoustic Specifications
Nominal Chassis Diameter 18" / 457.2 mm
Impedance 4 /8 /16 Ω
Power Handling 1200 W (A.E.S.)
Peak Power (6dB Crest Factor) 4800 W (A.E.S.)
Usable Frequency Range (-6dB) 28 Hz - 2 kHz
Sensitivity (1W - 1m) 98.5 dB
Moving Mass (inc. Air Load) 216 grams
Minimum Impedance (Zmin) 6.9 Ω
Effective Piston Diameter 15.5 " / 385 mm
Magnet Weight N/a
Magnetic Gap Depth 0.43" / 13 mm
Flux Density 1.25 Tesla
Coil Winding Height 1.102" / 30 mm
Voice Coil Diameter 5' / 127 mm
Speaker Type Bass Driver
Thiele Small Parameters (TSPs)
FS 36 Hz
Re 5.6 Ω
QMS 6.05
QES 0.35
QTS 0.339
Vas 185 Litres
Vd 1.34 Litres
CMS 0.095 mm/N
BL 28.4 T/m
MMS 216 grams
Xmax 11.75 mm
Sd 1169 cm2
Efficiency 3.00%
Le 2.3 mH
EBP 102.86 Hz
Mounting / Shipping Information
Overall Diameter 19.1" / 485 mm
Width Across Flats 18" / 457 mm
Flange Height 0.465" / 11.8 mm
Baffle Hole Diameter F/M 16.53" / 419.86 mm
Baffle Hole Diameter R/M 16.33" / 414.78 mm
Gasket Supplied Front & Rear
Outer Fixing Holes 8x ø 0.275" on 18.425" PCD / 8x ø 7 mm on 468 mm PCD
Inner Fixing Holes 8x ø 0.275" on 17.25" PCD / 8x ø 7 mm on 438.15 mm PCD
Depth 8.7" / 221 mm
Weight 26.12 lb / 11.85 Kg
Recommended Enclosure Volume 4.41 - 14.12 cu ft / 125 - 400 Litres
Shipping Weight 29.76 lb / 13.50 Kg
Packing Carton Dimensions (W) 500 (D) 500 (H) 275 mm
DescriptionSizeFormatGet File
Fane Colossus 18XT5N Datasheet0.27Mb.pdfDOWNLOAD
